Waterproof design
High Transparency
Model(mm): P16-16, P16-33, P25-25, P33-33, P25-50

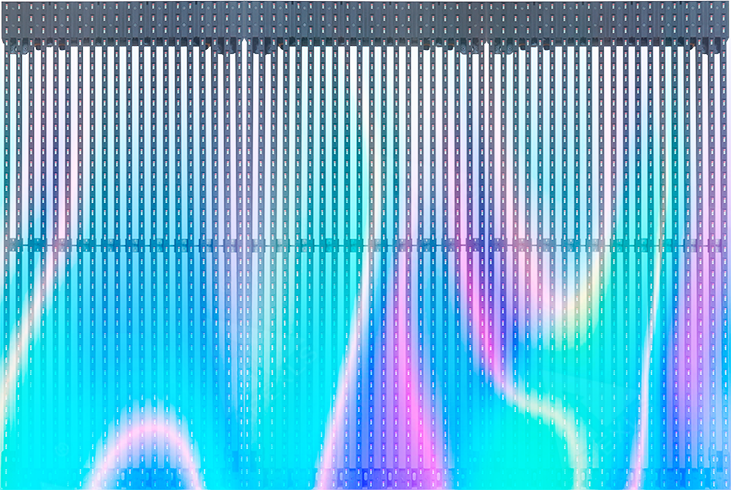

The Apexls KM Series outdoor curtain LED display—also known as an LED mesh display—features a highly transparent and lightweight design. It is 65% lighter than conventional LED displays, requiring minimal steel structure. Its superb transparency reduces the impact on natural lighting, providing clear visibility and an elegant look for architectural facades and urban landmarks.
This outdoor curtain LED display is ideal for building tops, glass walls, city landmarks, and municipal projects. The flexible modular structure allows seamless integration with various architectural surfaces. With stable brightness and high contrast, it delivers brilliant visual performance even under direct sunlight, ensuring your commercial content stands out.

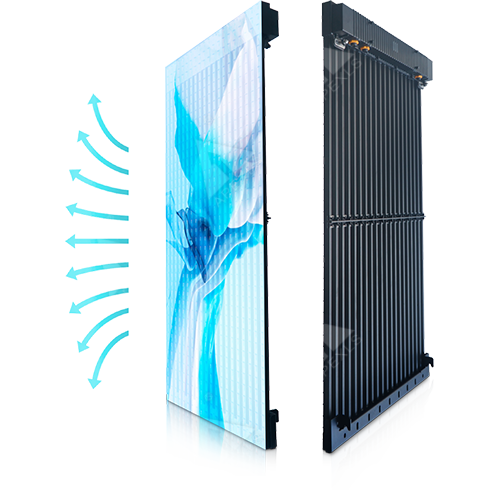

The KM Series adopts a fan-free and noise-free heat dissipation system that improves durability while maintaining stable performance. Each lamp strip is detachable, allowing easy front or rear maintenance. Even non-professional technicians can install or replace modules effortlessly, saving time and cost for large-scale outdoor installations.
Equipped with a high-efficiency PFC power supply, the outdoor curtain LED display saves more than 75% energy compared with traditional LED screens. It is engineered to withstand high humidity, salinity, UV exposure, and extreme temperatures, ensuring consistent operation in all-weather conditions, including coastal or tropical regions.

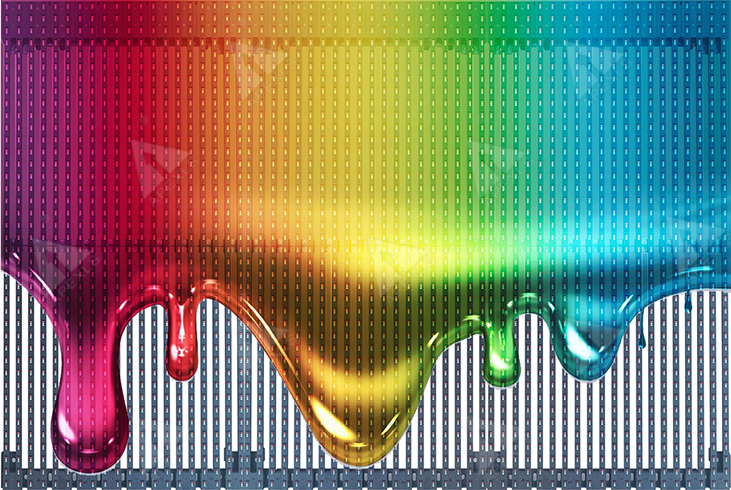

This series offers a minimalist structural requirement, making it much lighter than box-type LED panels. With up to 80% transparency, it maintains the building’s natural lighting and reduces aesthetic impact. The transparent LED curtain display enhances the building’s visual appeal while providing vibrant digital advertising opportunities.

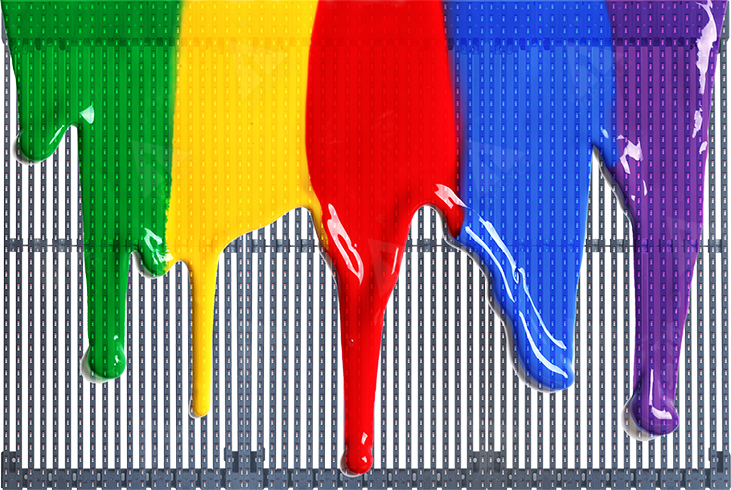

The KM Series uses in-line lamp beads with IP65 waterproof rating, allowing long-term outdoor performance. Its robust, weatherproof structure ensures stable operation against rain, wind, and dust. This outdoor LED display is a perfect choice for architectural lighting projects, ensuring reliability and longevity in any environment.
| Model | P15-15 | P15-31 | P16-16 | P16-33 | P25-25 |
| Pixel Pitch(mm) | 15.625-15.625 | 15.625-31.25 | 16-16 | 16-33 | 25-25 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED type | DIP346 | DIP346 | DIP346 | DIP346 | DIP346 |
| Pixel density(dots/m²) | 4,096 | 2,048 | 3,600 | 1,800 | 1,600 |
| Brightness（cd/m²) | 10,000 | 10,000 | 8000-10000 | 8000-10000 | 8,000 |
| Power Avg.(W/m²) | 164 | 164 | 142 | 60 | 68 |
| Power Max.(W/m²) | 410 | 410 | 355 | 260 | 280 |
| Transparency rate (%) | 40 | 65 | 45 | 70 | 65 |
| Minimum view distance(m) | 14 | 20 | 16 | 25 | 25 |
| Cabinet size (mm) | 1000×1000 | 1000×1000 | 500×1000/500×500 | 500×1000 | 500×1500/500×1000 |
| Cabinet weight (kg/pc) | 22.8 | 20.9 | 8 | 5 | 6.5 |
| Fixing structure weight (kg/m²) | 5 | ||||
| Refresh rate (Hz) | 3840 | ||||
| Working temperature (℃) | -20 ~ +60 | ||||
| Working humidity (RH) | 10～90 | ||||
| Ingress protection(front & back) | IP65 | ||||
| Ventilation and heat dissipation | Natural ventilation | ||||
| Cleaning method | High-pressure water jet | ||||
| Shell material | Aluminium alloy | ||||
| Control system | Integration | ||||
| Maintenance mode | Front/Rear | ||||
| Life time (hrs) | 100000 | ||||
0
· Product: P16-33
· Screen Size: 780 sqm
· Location: Ekaterin, Russia
0
· Product: P16-33
· Screen Size: 234 sqm
· Location: Turkey
0
· Product: P16-16
· Screen Size: 311 sqm
· Location: Indonesia
0
· Product: P16-16
· Screen Size: 570 sqm
· Location: Russia
